The prevoS1 blowguns for compressed air
Innovation and performance at the core of your business
Compact, compressed air blow guns with embedded plug
Users will appreciate the easy handling and comfortable grip of the prevoS1 blow gun in their daily routine. These blow guns are equipped with a precision crafted, nitrided steel plug and compatible with all major connection profile standards.
When the blow gun is connected directly into a prevoS1 quick-safety coupling, they form a seamless, leak-free union.
Exclusive patented technology.
Pistol grip blowgun product features
■ Low air consumption and embedded plug – eliminates all risk of leaks to increase energy savings!
■ Easy to use – ergonomically designed by our in house R&D department for a perfect connection with the prevoS1 safety quick coupling. The coupling becomes the assembly’s handle.
■ Body is hermetically sealed to protect internal mechanisms from contamination and prolong the service life of the blowgun.
■ Polyamide composite body: durable, light weight and insulated for comfort. Resistant to abrasion, impacts and chemical exposure.
ADVANTAGES: All materials used in the prevoS1 blowgun are compliant with the RoSH and REACH directives.
Maximum operating pressure : 174 psi
Recommended pressure : 87 psi
Operating temperature range : +5°F to 158°F
A comprehensive range
Each nozzle corresponds to precise needs in terms of safety, noise level, blowing power, dynamic pressure and air consumption.
■ Standard model available with 6 different nozzles choice for various blowing applications.
■ Pocket model: with an OSHA composite nozzle. Ultra compact, high flow rate and completely scratch resistant.
The technical data provided is for blow guns operating at 87 psi and applicable for all connection profiles:
IBG 06MTL
Blow gun prevoS1 with metal nozzle
BG MTL: long and narrow metal nozzle is made from galvanized steel and provides powerful blowing.
■ Material: galvanized steel
■ Air consumption: 11.8 cfm
■ Noise level: 89 dBA
■ Blowing force: 14 ozf
■ Dynamic pressure at 4”: 32 psi
■ Specifications: long and tapered nozzle, accurate and targeted blowing
IBG 06MTLH
Blow gun prevoS1 with metal nozzle
BG MTLH: standard model fitted with OSHA compliant metal nozzle.
■ Material: galvanized steel
■ Air consumption: 7.7 cfm
■ Noise level: 85 dBA
■ Blowing force: 9 ozf
■ Dynamic pressure at 4”: 33 psi
■ Specifications: long and narrow nozzle, powerful blowing

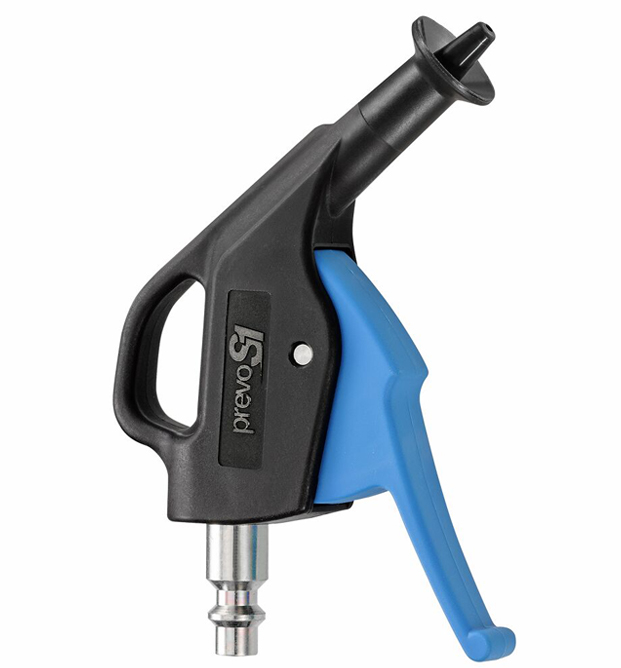

IBG 06ECR
Blow gun prevoS1 with protective air screen
BG ECR: creates a protective air screen for maximum user safety
■ Material: polyamide composite
■ Air consumption: 14.6 cfm
■ Noise level: 87 dBA
■ Blowing force: 5 ozf
■ Dynamic pressure at 4”: 30 psi
■ Specifications: Air screen blow gun, protects against backflow of dust and shavings
■ Non-scratch: avoids damage to the surrounding material
IBG 06OSH
Blow gun prevoS1 with OSHA composite nozzle
BG OSH: polyamide composite body, OSHA compliant, nozzle offers a high flow rate and is scratch resistant.
■ Material: polyamide composite
■ Air consumption: 7.7 cfm
■ Noise level: 87 dBA
■ Blowing force: 9 ozf
■ Dynamic pressure at 4”: 14 psi
■ Specifications: high flow rate, outlet pressure limited to 29 psi
■ Non-scratch: avoids damage to the surrounding surfaces
IBG 06SIL
Blow gun prevoS1 with silent nozzle
BG SIL: sound level of 74 decibels (compared to 85-89 for other models in this range).
■ Material: polyamide composite
■ Air consumption: 5.5 cfm
■ Noise level: 74 dBA
■ Blowing force: 10 ozf
■ Dynamic pressure at 4”: 3 psi
■ Specifications: silent blow gun, 74 dBA, limits noise in the workshop
■ Non-scratch: avoids damage to the surrounding surfaces
IBG 06PRE
Blow gun prevoS1 with straight nozzle
BG PRE: blowing power comparable to the metal nozzle and is scratch resistant.
■ Material: polyamide composite
■ Air consumption: 82 cfm
■ Noise level: 85 dBA
■ Blowing force: 10 ozf
■ Dynamic pressure at 4”: 36 psi
■ Specifications: direct and concentrated blowing
■ Non-scratch: avoids damage to the surrounding surfaces
prevoS1 Pocket
Blow gun prevoS1 with OSHA composite nozzle
■ Material: polyamide composite
■ Air consumption: 8.2 cfm
■ Noise level: 89 dBA
■ Blowing force: 6 ozf
■ Dynamic pressure at 4”: 7.25 psi
■ Specifications: high flow rate, outlet pressure limited to 29 psi
■ Non-scratch: avoids damage to the surrounding surfaces
prevoS1 compressed air blowguns are also available in a retail packaging option.

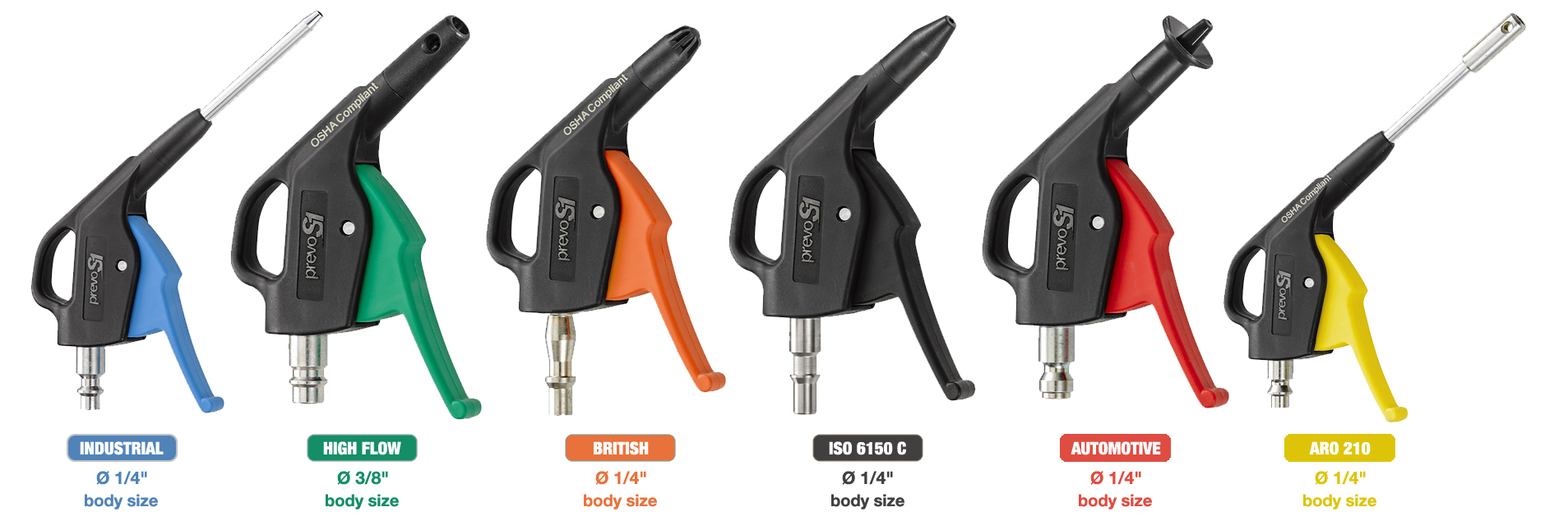

Compatibility and model
■ International compatibility: Available in different international profiles
■ Each blow gun is equipped with an embedded plug: The plug is installed directly into the body of the blow gun to create a more compact tool and eliminate leaks when it’s connected to live air.
■ The identical color appears on the coupling button and blow gun handle to easily pair the correct connection profile.
Quick safety compressed air coupling reference
A global concept
The prevoS1 coupling serves as a handle for the assembly when using the blowgun, ensuring real ease of use.
In addition to providing an excellent grip, the blowgun/coupling combination eliminates the risk of leaks between the coupling and the tool. Find out more about the prevoS1 quick safety coupling.
Accessories for the compressed air pistol grip blow gun

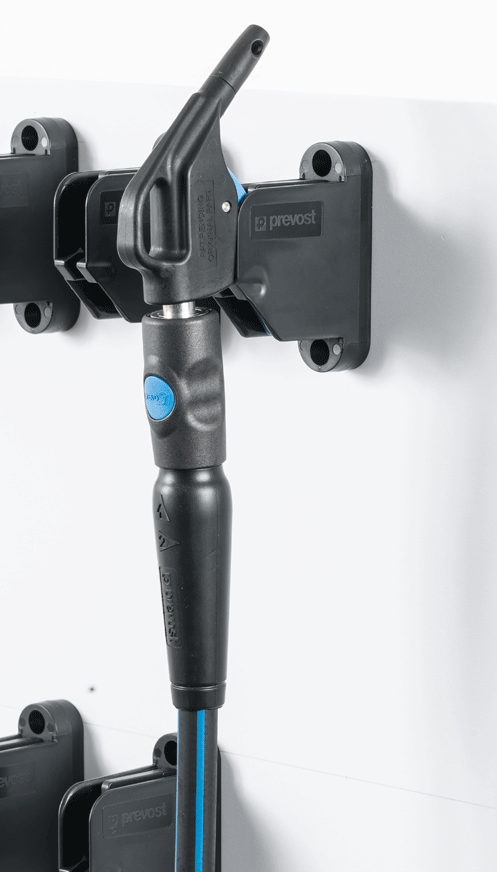

■ Keep your workstation organized with the BGFIX wall mount. Allow easy blowgun access and detaches quickly in one motion.
The wall mount is available with two integrated magnets (BG FIXM) which allows it to be moved around the workstation for the users convenience.
BGFIX and BGFIXM are also compatible with the 27202 blowgun.
■ Have peace of mind knowing your tools will not scratch or damage costly production pieces during auto maintanence, bodywork, woodworking or other sensitive applications. The ECP protector is a rubber sheath that slides between the coupling and hose to cover the clamp and is available in two sizes.
