PPS1 CI UNC - Pipe clamp (packed 5 per box)
For pipe OD (in)
(1) 1/2"
UNC female thread
3/8"
Description
Reference
For pipe OD (in)
UNC female thread
PPS1 CI16UNC
PPS1 CI20UNC
PPS1 CI25UNC
PPS1 CI32UNC
PPS1 CI40UNC
PPS1 CI50UNC
PPS1 CI63UNC
PPS1 CI80UNC
PPS1 CI100UNC

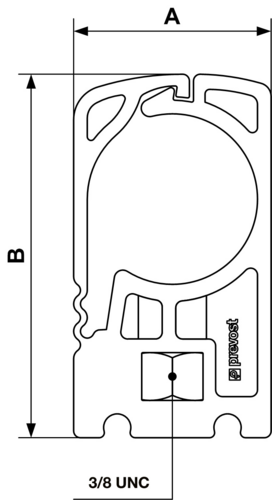

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS1 CI16UNC
0.945
1.85
PPS1 CI20UNC
0.945
1.929
PPS1 CI25UNC
1.142
2.087
PPS1 CI32UNC
1.496
2.244
PPS1 CI40UNC
1.929
3.917
PPS1 CI50UNC
2.323
4.114
PPS1 CI63UNC
2.953
5.315
PPS1 CI80UNC
3.543
5.709
PPS1 CI100UNC
4.331
6.102
Description
Dimensions
| Reference | A inch | B inch |
|---|---|---|
| PPS1 CI16UNC | 0.945 | 1.85 |
| PPS1 CI20UNC | 0.945 | 1.929 |
| PPS1 CI25UNC | 1.142 | 2.087 |
| PPS1 CI32UNC | 1.496 | 2.244 |
| PPS1 CI40UNC | 1.929 | 3.917 |
| PPS1 CI50UNC | 2.323 | 4.114 |
| PPS1 CI63UNC | 2.953 | 5.315 |
| PPS1 CI80UNC | 3.543 | 5.709 |
| PPS1 CI100UNC | 4.331 | 6.102 |
